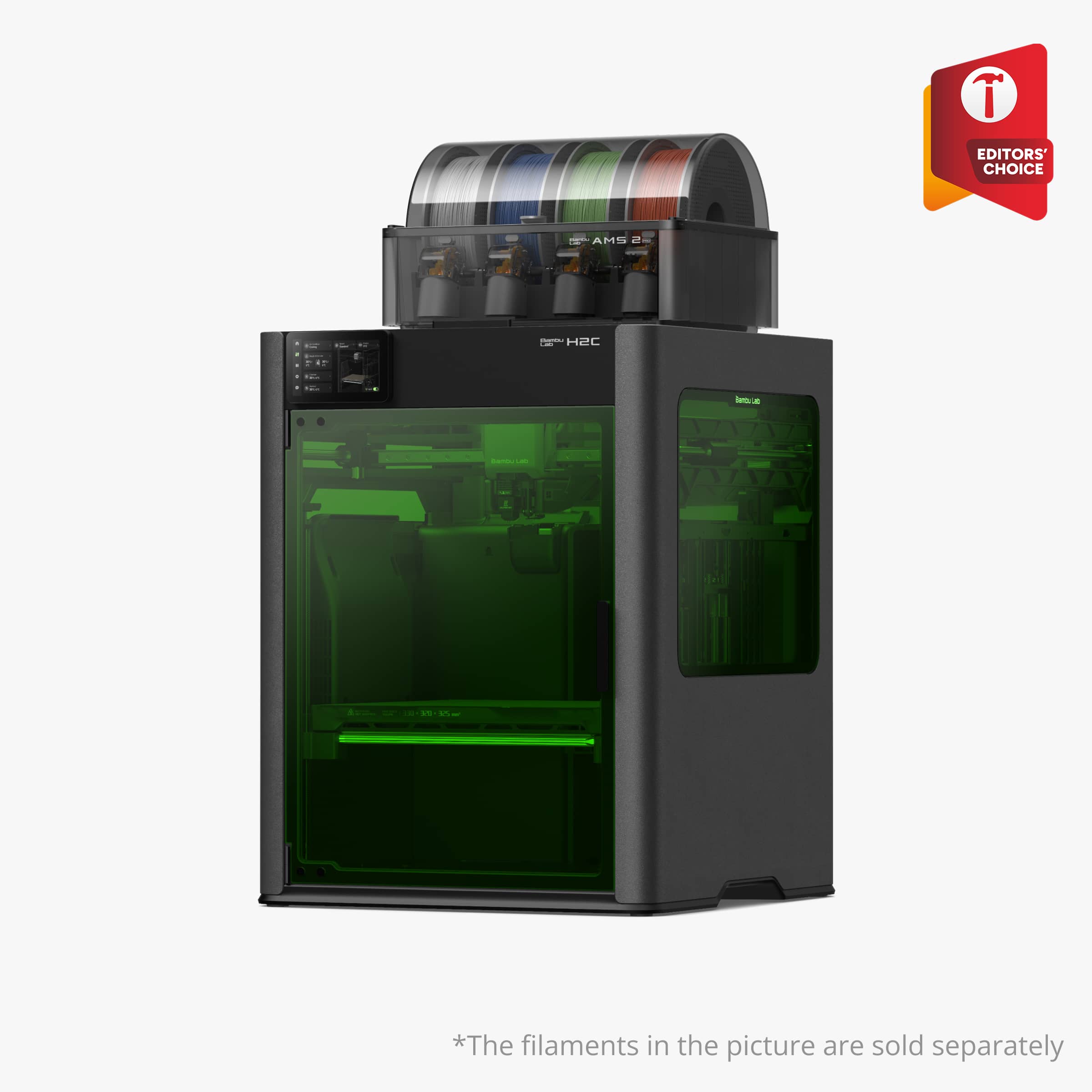

Bambu Lab H2C

Bambu Lab H2C

Uncompromising Multi-Material.

Revolutionize How You Print Your Projects

Paint No More, Print 7 Colors in One-Piece. Geminaraptor @FireBird(Sophie) Purge Saving Multi-Color Printing Painting intricate models is a thing of the past — the H2C brings your designs to life with six-color printing and a versatile seventh nozzle for support or an additional color. This whole thing is printed in 2 parts. The main raptor is 6-color and the base is another 6-color. Purge and Prime Tower Waste 532G H2C 3032G H2D 3917G H2S Print Time H2C 58% H2D 88% H2S 100% No More Assembly — Print Multi-Material Parts in One Piece. Aero Mobius Drone Frame @极尘悦 Purge Saving Multi-Material Printing With the H2C, you can print up to seven different materials in a single run — no nozzle purging required. Combine multiple material properties in one seamless structure and take integrated design to a whole new level. PA6-GF Structural rigidity TPU for AMS Impact absorbing PC FR Fire Retardant Print Durable Joints — Built Right Into the Parts. Heavy Second Core Mecha @Kit Crafters Integrated TPU Joints for Multi-Color Parts Print durable TPU ball joints for your robot models — flexible, long-lasting, and built for endless motion. TPU for AMS Joints PLA Matte Main Body

Vortek Hotend Change System

Multi-Material Printing with Minimal Purge Waste Learn More > Fully Automatic Filament Change Learn More > Always Delivering the Most Efficient Combination Learn More > Multi-Material Printing with Minimal Purge Waste In traditional single-nozzle multi-material printing, purging is needed to clear leftover material between filament changes.Vortek changes that with an intelligent hotend-swapping system that replaces the entire hotend — delivering faster, cleaner prints with minimal waste. Fully Automatic Filament Change The Vortek system works seamlessly with our highly reliable AMS (Automatic Material System), making the entire filament change process fully automatic — no need to manually load each filament into the toolhead. Always Delivering the Most Efficient Combination The Vortek system can store filament information in the hotend’s memory, ensuring the correct filament is matched to each hotend. If you are printing with more than seven filament types, the system can calculate the optimal combination to minimize purge waste.

Why Vortek?

Small Form Factor, More Filaments Learn More > 8-Second Induction Heating Learn More > Contactless Design For Reliability Learn More > Colors Are No Longer Limited By How Many Toolheads You Have Learn More > Enclosed for High-Performance Printing Lean More > Fully Automatic Nozzle Offset Calibration Learn More > Dedicated Hotends for Specific Filaments Learn More > Small Form Factor, More Filaments Because only the hotend is swapped, the system can house up to six replaceable hotends without significantly reducing the build volume.That means more materials, more colors, and more possibilities — all in one print.

8-Second Induction Heating Our industry-leading induction heating technology brings the nozzle to temperature in 8-sec, significantly reducing the preheating time for each material swap compared to traditional methods. Contactless Design For Reliability Our high standards for reliability led us to move away from contact-based metal pins, which are prone to oxidation and unstable connections.We developed a contactless solution that ensures a stable, high-frequency connection — the foundation for precise temperature control and intelligent hotend sync. Colors Are No Longer Limited By How Many Toolheads You Have Unlike traditional toolchanger printers that limit color count by the number of toolheads, the H2C supports up to 24 materials in a single print through parallel-connected AMS units. Its intelligent algorithm optimizes filament-to-hotend allocation to minimize purge waste while delivering outstanding multi-color and multi-material results. Enclosed for High-Performance Printing With its seamless enclosure and adaptive airflow system, the H2C maintains a stable chamber temperature for high-performance materials and filters the air to keep your workspace clean and safe. Fully Automatic Nozzle Offset Calibration Our inductive nozzle offset calibration is fully automated — no manual steps, no calibration plates, no extra setup. In just a few minutes, the H2C precisely calibrates nozzle offset to within 25 microns.* Dedicated Hotends for Specific Filaments The H2C's Vortek system lets you dedicate one of its six interchangeable hotends to specific filaments — a game-changer for valuable engineering materials.This ensures superior consistency and reliability across prints. Each hotend can even automatically store filament information, so the next time you load that material, it's instantly matched to the correct hotend.

Not A Toy, A Serious Production Powerhouse

Top Tier Printing Performance

Better High-Speed Reliability & Real-Time Error Detection. The PMSM servo extruder delivers up to 10 kg of maximum extrusion force—70% more than stepper motor—dramatically improves high-flowrate extrusion stability. Our proprietary servo architecture samples resistance and position at 20 kHz, actively detecting filament grinding and clogs in real time. 50 µm Ultra-Fine Motion Accuracy* With its Vision Encoder, the H2C achieves a distance-independent motion accuracy of less than 50 μm—thinner than human hair. The system automatically compensates for any mechanical drift during calibration, ensuring consistent precision and peak performance over time.* Smooth Surface, Sharp Edges The H2C leverages both the servo motor on the extruder and the high-resolution eddy current sensors on the nozzle to sense extrusion dynamics. This enables precise extrusion control and automatic calibration of Pressure Advance (PA) parameters for each filament, resulting in smoother surfaces and cleaner, sharper edges.

ON

OFF Unleash The Full Potential of High-Performance Materials The H2C's 65 °C actively heated chamber & 350°C Nozzles minimizes warping and deformation while enhancing layer adhesion for high-performance, high-temperature filaments.

Chamber Heater 350°C Nozzles Comprehensive Print Monitoring The H2C is equipped with an array of 59 sensors* and a quad-camera computer vision system, all orchestrated by our proprietary neural algorithm. This system delivers intelligent, real-time diagnostics that can detect even the most subtle print anomalies as they happen. You don't have to be an expert to solve problems—your printer does the job for you.

AI Camera The H2C features an AI-backed camera system. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures. Also runs a pre-flight scan to ensure a safe start.

Pre-Flight Spaghetti Nozzle Clumping Air Printing

Safety, Checked!

Best-In-Class Air Filtration The H2C's three-stage filtration system is essential for printing with engineering filaments. This powerful combination of a G3 pre-filter, an H12 HEPA filter, and a coconut shell activated carbon filter effectively minimizes the odors and harmful particulates often released by engineering materials.

Fully Fire-Retardant Construction The H2C's chamber is constructed entirely with flame-retardant material, providing robust, passive fire safety protection across the entire enclosure.

Flexible Network Security & Connectivity The H2C offers convenient cloud connectivity for remote control from any device. For security-sensitive applications, it also provides full offline functionality, ensuring complete physical isolation. Users can operate the printer, send files, and update firmware without an internet connection. For advanced users, Developer Mode enables MQTT port access for integrating third-party components and software.*

H2C Specs

឵ Expand table Download PDF

FAQ

1. What hotends are included in the H2C Combo? The H2C AMS Combo/Laser Full Combo includes 8 hotends and 1 AMS 2 Pro:Right hotends (Induction hotends): 4 × 0.4 mm hardened steel induction hotends, of which 1 is pre-installed on the printer and 3 are included in the accessory box. The accessory box also includes 1 × 0.2 mm induction hotend and 1 × 0.6 mm induction hotend. Left hotends (Standard hotends): 2 × 0.4 mm hardened steel standard hotends, of which 1 is pre-installed and 1 is included in the accessory box. Currently, the firmware supports mixed flow-rate printing (standard flow + high flow), but does not yet support mixing different nozzle sizes during printing. If this feature is added in the future, we will provide details through a software update. 2. If I want full hotend-swap capability, what additional hotends do I need? How should the AMS be connected? To fully experience the Vortek 6-hotend automatic swap system, we recommend purchasing extra AMS and Hotends which include: 3 × 0.4 mm induction hotends, 1 × 0.2 mm left hotend, 1 × 0.6 mm left hotend, 1 x AMS 2 Pro, 1 x AMS HT. Combined with the AMS 2 Pro that comes with the H2C Combo, you will then have 2 × AMS 2 Pro + 1 × AMS HT. To setup: Two AMS 2 Pro feed the right induction hotends; AMS HT feeds the left hotends. This gives you full 7-hotend automatic swapping with AMS support on both sides. In addition to the above options, you can also try: Multi-AMS Setup: Add 2 × AMS HT. All three AMS feed the right-side hotends. Future Setup (2026): A Filament Track Switch Module will be released, allowing full 7-hotend support with only 2 AMS units, enabling free filament switching between left & right filament paths. 3. Does the H2C support laser and blade-cutting functions? The H2C Laser Edition supports both 10W and 40W laser modules and is also compatible with the blade-cutting module. The non-laser H2C supports blade-cutting by default, but can be upgraded to support laser functions via an upgrade kit. 4. Can H2S or H2D be upgraded to H2C? Both H2D and H2S users may upgrade to H2C by installing the Vortek Upgrade Kit. However, the upgrade process is complex and time-consuming, so users who want the Vortek experience are recommended to purchase H2C directly. Purchasing H2S/H2D first and upgrading later will incur extra cost. The Vortek Upgrade Kit is expected to be available in early 2026. 5. Can H2C dual-nozzle printing be used with different nozzle sizes simultaneously? Not currently. The firmware does not yet support mixing nozzle sizes (left vs. right or within Vortek hotend sets). However, mixed nozzle types of the same size (e.g., 0.4 mm standard flow + 0.4 mm high flow) are supported. 6. Are the H2C buildplates, calibration plates, laser platform, and blade-cutting mats compatible with H2D? Because the Vortek hotend rack occupies additional space, the H2C print bed is slightly smaller than the H2D. Therefore, buildplates are not interchangeable between H2C and H2D. However, the vision calibration plates, laser platform, and blade-cutting mats are fully compatible across all H2 series models. For more details, please refer to Wiki. 7. How will my order be shipped and divided into packages? 8. Are there any limitation of the Left and Right Hotends when using different filaments？ Please check WIKI for detail information. For TPU please check . Note:
* All the demonstrated print time & purge waste data are calculated results by Bambu Studio.
* The advertised Vortek features & advantages are based on fully utilizing 6 induction hotends of same diameter and corresponding AMS units.
* All product data for the H2C is based on Bambu Lab’s internal testing. Actual results may vary due to individual product differences, user habits, and environmental conditions. Please refer to actual usage for reference.
* The optional Vision Encoder is required for Motion Accuracy Enhancement.
* Auto Holes-contour Compensation must be enabled in Bambu Studio, and designated Bambu filament must be used.
* DynaSense Extruder filament grinding feature limited by filament type.
* "59 sensors" is refer to fully equipped H2C Laser Edition with Bird's Eye camera and 6 induction hotends.
* High-flow Hotends are optional equipments, buy at official store.
* Due to safety protocol, Developer mode cannot be enabled when using Laser and Cutting functions.
* Push notifications require use of Bambu Handy and cloud connectivity.
* Creator projects are provided for illustrative purposes only. Bambu Lab does not endorse, and disclaims any representations or warranties regarding creator projects, including, without limitation, the safety, marketability, or usability of any 3D printed works based on such projects. See our Terms of Service for more information.
* The 8-second heating time for induction hotend is based on Bambu PLA Basic printing temperature. * The “no purging” claim does not include the initial purge required when loading a brand-new filament into a hotend. * The fire-retardant chamber is made using UL94 V-0 grade materials. * Big thanks to everyone who created these amazing projects: Geminaraptor by @FireBird(Sophie); Bambu Lab Racer by @Mr.Rod; Blériot Rider - XI by @CrazyJN; Heavy Second Core Mecha by @Kit Crafters; Aero Mobius Drone Frame by @极尘悦; Multi-color Sneaker by @CloudBerry; Gridfinity Anatomical Kidney by @Azrael; Plant Cell by @suezou; EV Charger by @Bambu Lab
